Fire Extinguisher

We manufacture all type of fire extinguisher like A B C Type Dry Powder Fire Extinguisher, CO2 Fire Extinguisher, Dry Powder Fire Extinguisher, Mechanical Foam (Afff) Fire Extinguisher, Modular Automatic Fire Extinguisher, Water CO2 Type Fire Extinguisher, Clean Agent Fire Extinguisher and all kind of Fire Fighting Equipments. We provide complete Fire Extinguisher products range and after sales services on all India bases.

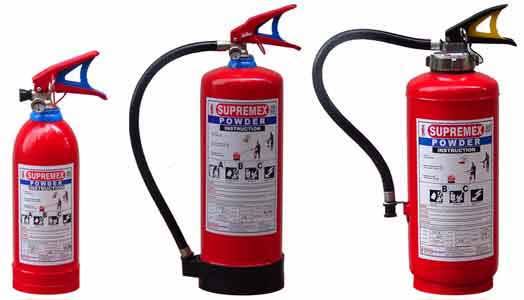

A B C Type Dry Powder Fire Extinguisher

ABC or Multi-Purpose extinguishers comprise of a special fluidized and siliconized mono ammonium phosphate dry chemical. It chemically insulates Class A fires by melting at approximately 350°F and coats surface to which it is applied. It smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator.

FEATURES :

• Stored Pressure Design
• Dependable Drawn Steel Cylinders
• Durable High Gloss Powder coating
• Brass Valve Chrome Plated Heavy duty
• 'Siliconised' MAP based multi-purpose powder with BIS Approved
• BIS Approved
• CE Certified
• Maintenance should be done as per IS 2190:2010

USEFUL FOR :

• Homes
• Offices
• Buildings
• Warehouses
• Cinema Hall

User Friendly : Easy and More Economical to Maintain and Service

TYPE	STORED PRESSURE					CARTRIDGE OPERATED
Model.no	SE-SP-ABC-1	SE-SP-ABC-2	SE-SP-ABC-4	SE-SP-ABC-6	SE-SP-ABC-9	SE-C-ABC-6	SE-C-ABC-9
Capacity (Kg)	1	2	4	6	9	6	9
Diameter (mm)	86.5	108	130	160	175	150	175
Height (mm)	340	395	485	550	605	495	615
Empty Weight (Kg)	1.3	1.8	2.8	3.5	4.7	5.1	7.1
Filled Weight (Kg)	2.3	3.8	6.8	9.5	13.7	11.1	16.1
Operating Temperature	-20 °C to +55 °C	-20 °C to +55 °C	-20 °C to +55 °C	-20 °C to +55 °C	-20 °C to +55 °C	-30 °C to +55 °C	-30 °C to +55 °C
Working Pressure At 27 °C	15 bar	15 bar	15 bar	15 bar	15 bar	15 bar	15 bar
Maximum Service Pressure	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa
Test Pressure	35 bar	35 bar	35 bar	35 bar	35 bar	35 bar	35 bar
Average Discharge Time (s)	8	11	15	20	25	250	250
Discharge Range (mts)	<2	<2	<4	<4	<4	<4	<4
Fire Rating	1A, 8B	1A, 13B	2A, 21B	3A, 21B	3A, 55B	3A, 34B	4A, 55B

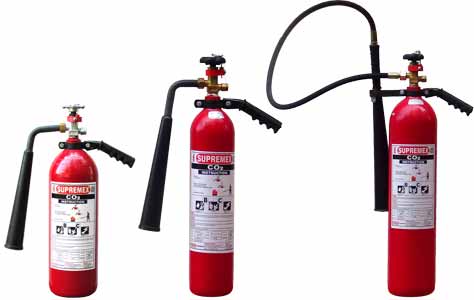

CO2 Fire Extinguisher

Co2 is a liquefied gas, which is highly effective fighting B and C class of fires. These extinguishers are ideal for areas where contamination and/or clean-up are a concern, such as data processing centers, labs, telecommunication rooms, food storage and processing areas etc.

FEATURES :

• Carbon Dioxide, Gases Agent, Colorless, Odorless. Suitable for Class B, C Fire.
• Manganese Steel / Carbon Steel (IS 7285)
• Screwed down /Squeeze Grip Type
• BIS Approved
• Maintenance should be done as per IS 2190:2010

USEFUL FOR :

• Rail Yards / Warehouses
• Construction Sites
• Airports
• Electrical Substation
• Meter Room
• DG Room
• Power Sector

USER FRIENDLY :

• No Electrical Conductivity Back To The Operator
• No Thermal Or Static Shock
• Good Visibility During Discharge

Type	STORED PRESSURE
Model	SE -CO2-2	SE -CO2-3	SE -CO2-4.5
Capacity (Kg)	2	3	4.5
Average discharge time	9 sec	9 sec	10 sec
Height	580 mm	545 mm	705 mm
Diameter	108 mm	140 mm	140 mm
Empty Weight (Kg)	6.2	9.9	12.4
Filled Weight (Kg)	8.2	12.9	16.7
Operating temperature	-30°C to +55°C	-30°C to +55°C	-30°C to +55°C
Maximum Services	16.9 MPa	16.9 MPa	16.9 MPa
Test Pressure	250 bar	250 bar	250 bar
Fire ratings	8B	13B	34B

Dry Powder Fire Extinguisher

Dry Chemical powder extinguishers utilize a specially siliconized Sodium Bicarbonate. It chemically insulates class B , C fires by forming a cloud and cutting off the oxygen supply, thus extinguishing the fire. It smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator.

FEATURES :

• Stored Pressure Design
• Dependable Drawn Steel Cylinders
• Durable High Gloss Powder coating
• Brass Valve Chrome Plated Heavy duty

USEFUL FOR :

• Homes / Offices
• Buildings
• Warehouses
• Pump Room
• Refinery

User Friendly : Easy and More Economical to Maintain and Service

TYPE	STORED PRESSURE			CARTRIDGE OPERATED
Model.no	SE-SP-SBC-4	SE-SP-SBC-6	SE-SP-SBC-9	SE-C-SBC-6	SE-C-SBC-9
Capacity (Kg)	4 kg	6 kg	9 kg	6 kg	9 kg
Diameter (mm)	130	150	175	150	175
Height (mm)	485	550	605	495	615
Empty Weight (Kg)	2.8	3.5	4.7	5.1	7.1
Filled Weight (Kg)	6.8	9.5	13.7	11.1	16.1
Operating Temperature	-30 °C to +55 °C	-30 °C to +55 °C	-30 °C to +55 °C	-30 °C to +55 °C	-30 °C to +55 °C
Working Pressure At 27 °C	15 bar	15 bar	15 bar	15 bar	15 bar
Maximum Service Pressure	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa
Test Pressure	35 bar	35 bar	35 bar	35 bar	35 bar
Average Discharge Time (s)	15	20	25	20	25
Discharge Range (mts)	<4	<4	<4	<4	<4
Fire Rating	55B	89B	144B	3A 34B	4A 55B

CARTRIDGE TYPE EXTINGUISHER ALSO AVAILABLE IN POTASSIUM BI CARBONATE (PBC) IN 6KG AND 9KG CAPACITY.

CO2 Fire Extinguisher

Foam has the ability to form an aqueous film which quickly over water-insoluble hydrocarbon fuel surfaces causing rapid fire extinguishment and vapour suppression for class b fires. Also it provides excellent penetrating and wetting qualities when used on class a fires. Hence, foam extinguishers are ideal for fires involving volatile liquids and freely burning materials such as lubricant, oil fires, paper, cloth, wood, etc.

FEATURES :

• Only for fighting class A and B fire
• Dependable Drawn Steel Cylinders
• Brass Valve Chrome Plated Heavy duty
• High quality epoxy polyester powder coated
• BIS Approved
• CE Certified
• Maintenance should be done as per IS 2190:2010

USEFUL FOR :

• Paints
• Lubricants
• Chemical Industry
• Oil Fire/Refinery
• Kitchen/Restaurant
• Boiler Room

User Friendly : Easy and More Economical to Maintain and Service

Warning : Do not use on electrical fires.

TYPE	STORED PRESSURE		CARTRIDGE OPERATED
Capacity	6L	9L	6L	6L
Model No.	SE-SP-MF-6	SE-SP-MF-9	SE-C-MF-6	SE-C-MF-9
Diameter (mm)	150	175	150	175
Height (mm)	550	605	495	615
Empty Weight (Kg)	3.5	4.7	5.1	7.6
Filled Weight (Kg)	9.5	13.7	11.1	16.6
Operating Temperature	+5°C TO +555°C	+5°C TO +555°C	+5°C TO +555°C	+5°C TO +555°C
Working Pressure At 27°C	15	15	15	15
Maximum Service Pressure	1.6 Mpa	1.6 Mpa	2.1 Mpa	2.1 Mpa
Test Pressure	35 bar	35 bar	35 bar	35 bar
Average Discharge Time (s)	20	25	20	25
Discharge Range (mts)	4	4	4	4
Fire Rating	2A, 34B	3A, 55B	2A, 21B	3A, 34B

Modular Automatic Fire Extinguisher

Fire is a calamity that strikes without any warning and causes an unimaginable havoc. According to a survey conducted, 80% of the most damaging fires occur during night times, weekends or holidays when no one is around. Hence an automatic operation is the only solution for round-the-clock protection against any kind of fire. SUPREMEX fire extinguishers are simple and economical solution for buildings or structures where detection and suppression piped systems prove cumbersome and very expensive.

How Do They Work?

When heat from an uncontrolled fire increases to a pre-set temperature of the unit, the fusible link releases, discharging the extinguishing agent. The release temperature of the extinguisher (fusible link) can be pre-set at works ranging from 57 deg C/68 deg C/79 deg C/93 deg C/140 deg C and so on. They require no external source of energy and it can be operated electrically manually or mechanically for their operation.

Salient Features

1. n Automatic Detection and Suppression System together in a single unit quite unlike any other system available in the market
2. Automatic round-the-clock protection
3. Available in individual units or as a Complete system
4. Automatic, hence no human involvement, reducing the chances of injury and accidents to virtually zero.
5. Proves to be the most economical w hen compared and no surface re-laying
6. Reusable cylinder as it is not based on aerosol technology. Hence, most economical
7. Non-Freezing & long lasting.

Contents

Available with either ABC all purpose Dry chemical powder, Purple k , UL listed ABC powder , or HFC-227ea and HFC-36 (also known as FM-200TM, a registered trademark of Great Lakes Chemical Corporation or as Dupont's FE-227TM, range of extinguishing agents. As HFC-123 more commonly known as HALOTRON is slated to be phased out after 2013, Supremex does NOT recommend it to its clients.

Electro Piston Actuator (Optional Feature)

Switch can be linked into the wiring circuit for electric operation with solenoid actuator. This additional special facility can be attached at minimum extra cost.

Mounting Arrangement (Optional Feature)

Mounting Arrangement can be designed for special application request.

Applications

In Industries of following Types : Powder, Textile,Chemicals, Fertilizers, Petrochemicals, Refineries, Ceramics, Metal Processing, Vegetable Oil, Rubber, Wood, Paper and Pulp, Printing, Plastic, Paint, Computer etc. having special process hazards like Boiler & Furnaces, Fluid Power Systems, Oil quenching, Spray Finishing, Powder Coating, Dipping and Coating, Welding & Cutting, Grinding, Solvent Extraction, Conveyor Systems, Aerosol Charging, Transformers & Electrical Junction Boxes, Control Panels etc.

Applicability for General Occupancies & Storage Areas

Like Storage of Flammable & Combustible Liquids and Gases, Grain Mill Products Solid Fuels, Records, Libraries, Museums, Showrooms, Shops, Offices, Residential premises, Workshop, Garages, Paint Booths, Theaters, Radio Rooms, TV Stations etc.

The Common Features For All Models

Expellant :	Nitrogen
Cylinder Test Pressure :	30 kgf /cm2
Cylinder :	Stainless Steel / M. S. Plate Powder coated

Water CO2 Type Fire Extinguisher

Water Fire Extinguishers utilities the penetrating, soaking and cooling effective of a 4 meters concentrated water stream for effective supression of Class A Fires. It is an ideal low cost solution to provide Class A protection from all fire involving freely burning material such as wood, paper or fabric.

FEATURES :

• Only for fighting class A fire
• Dependable Drawn Steel Cylinders
• High quality epoxy polyester powder coated
• Brass Valve Chrome Plated Heavy duty
• Controlled discharge
• BIS Approved

USEFUL FOR :

• Schools / Theaters
• Apartments
• Office
• Textile / Wood Industry
• Warehouses

User Friendly : Easy and More Economical to Maintain and Service

Warning : Do not use on electrical fires.

TYPE	STORED PRESSURE		CARTRIDGE OPERATED
Model.no	SE-SPW-6	SE-SPW-9	SE-CW-6	SE-CW-9
Capacity (Kg)	6	9	6	9
Diameter (mm)	150	175	150	175
Height (mm)	550	605	495	615
Empty Weight (Kg)	9.5	13.7	10.5	7.5
Filled Weight (Kg)	9.5	13.7	10.5	16.5
Operating Temperature	+5°C to +55°C	+5°C to +55°C	+5°C to +55°C	+5°C to +55°C
Working Pressure At 27 °C	15	15 bar	15 bar	15 bar
Maximum Service Pressure	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa
Test Pressure	35 bar	35 bar	35 bar	35 bar
Average Discharge Time (s)	20	25	20	25
Discharge Range (mts)	<4	<4	<4	<4
Fire Rating	2A	3A	2A	3A

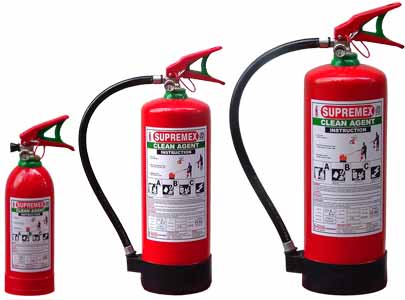

Clean Agent Fire Extinguisher

SUPREMEX fire extinguishers offer the superior performance and reliability you expect from quality products. CLEAN AGENT replaces Halon 1211 as the agent-of-choice for applications where the agent must be clean, electrically nonconductive, environment-friendly, extremely low in toxicity and exceptionally effective.

FEATURES :

• Stored Pressure Design
• Dependable Deep Drawn Steel Cylinders
• Brass Valve Chrome Plated Heavy duty
• Residue-free Hydro Fluorocarbon Gas Agent Pressurized With Nitrogen.
• Excellent Replacement For Halon 1211 Extinguishers.
• High Performance Extinguishing Agent.
• BIS Approved
• CE Certified
• Maintenance should be done as per IS 2190:2010

FEATURES :

• Computer Rooms / Laboratories
• Essential Communication Area
• Server-data Room / Tele-communications
• Aerospace- Warehouse
• Hospitals - Medical Equipments
• Sensitive Expensive Equipment

USER FRIENDLY :

• No Electrical Conductivity Back To The Operator
• No Thermal Or Static Shock
• Good Visibility During Discharge

ENVIRONMENTALLY ACCEPTABLE :

• EPA approved "Clean Agent" for Class A, B and C hazards
• Low GWP (Global Warming Potential)
• Low ODP (Ozone Depletion Potential)
• Short Atmospheric Lifetime

Technical Specifications :

TYPE	STORED PRESSURE
Model No.	SE-SP-CA 2	SE-SP-CA 4	SE-SP-CA 6
Capacity (Kg)	2	4	6
Diameter (mm)	108	130	150
Height (mm)	395	450	525
Empty Weight (apx)	1.9	2.9	3.6
Filled Weight (apx)	3.9	6.9	9.6
Operating Temperature	-30°C to +55°C	-30°C to +55°C	-30°C to +55°C
Working Pressure at 27°C	15 bar	15 bar	15 bar
Maximum Service pressure	1.9 MPa	1.9 MPa	1.9 MPa
Test pressure	35 bar	35 bar	35 bar
Average Discharge Time(S)	11	13	19
Discharge Range (mtrs)	<2	<2	<2
Fire Rating	1A, 8B	1A, 13B	2A, 21B

Water Mist Extinguishers

WATERMIST & CAFS SYSTEM

We have recently introduced a new revolutionary technology to our existing range of products. The Water Mist systemcreates a narrow distribution of ultrafine water mist, foam or CAFS using speciality nozzles.

This system is available in two variants :

• Backpack Type
  It is a portable unit that brings in significant reduction in response time and better accessibility, thus helping control fires at the initial stage. This system is also available with an option of using a breathing apparatus. Backpack systems are ideal for use in industry, first intervention system, fire trucks and vehicles for offshore and marine use.
• Trolley Mounted
  While handling medium sized fires, the trolley mounted system is the safest and most ideal choice. This system combines the use of a highly sophisticated nozzle and trolley supply system.
